Pulido Smartlock

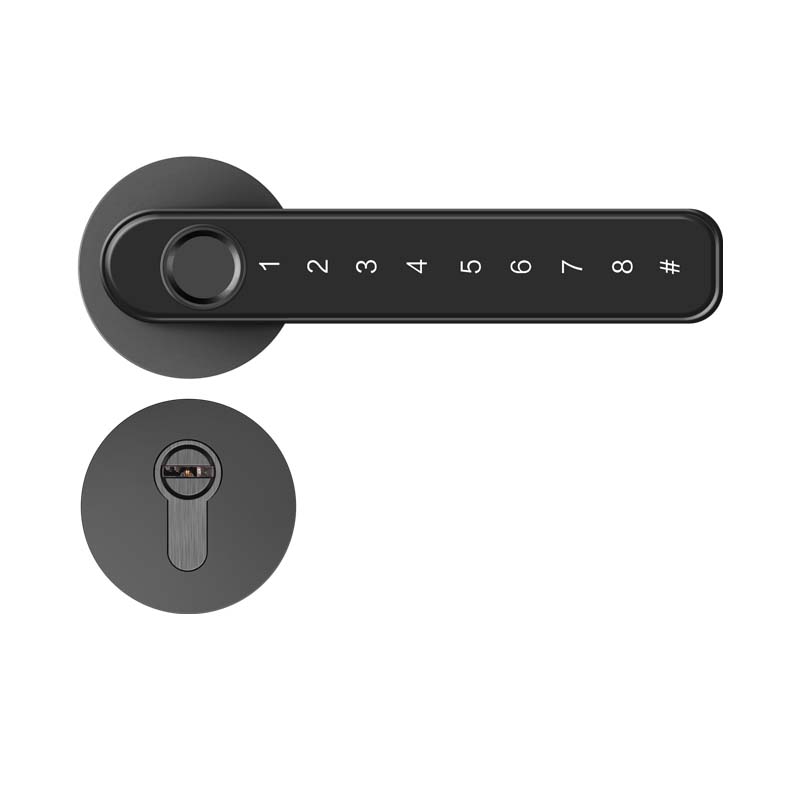

290 Smart Lever Lock 5 Unlocking Ways
290 Smart Lever Lock 5 Unlocking Ways
- 5-in-1 Entry TUYA Bluetooth Smart lever Lock is available in four ways to unlock, including fingerprints, passwords, Apps, Voice control, and Keys.
- 4558 and 5572 Mortise lock bodies are compatible.
- Replace your current mortise lock with a new one included.
- All features are totally the same with 190 Smart Lever locks but the lock body is the only difference between the two models.
- Works with Tuya Smart, Smart Life, or any OEM APP based on Tuya.
- Works with TTlock, TThotel and TTRenting.
- Tuya Bluetooth, TTlock Bluetooth, or just a digital version without any App are all available for this smart lock.
Specification of TY190 Smart Lock
| Product Information | Smart Locks based on TUYA App |
| Product Type | Smart Lever Lock |
| Product Model | TY190 |
| Product Color | Black (Optional Color Silver) |
| Main Material of Handle | Zinc Alloy |
| Size of Handel | 150mm*65mm*28mm |
| Suitable door thickness | 35 to 50mm |
| Suitable type of door | Wooden door |
| Material of latch | Zinc Alloy |
| Type of latch | Single latch |
| Length of latch | Adjustable length is 60/70mm |
| Suitable for left hand door and right hand door | √ |
| Where to install? | Interior doors like doors for room, apartment,hotel, office, school, warehouse, etc |
| Unlock and Lock Ways | |
| Fingerprint Unlock | √ |
| Code Unlock | √ |
| Card Unlock | × |
| APP Unlock | √ |
| Voice Control | × |
| Key Unlock | √ |
| Remote Unlock |
√ （requires gateway） |
| Free Passage Mode | √ (If you enable this feature, everyone can unlock the door without the passcodes or right fingerprints.) |
| Smart Function | |
| Remote management |
√ （requires gateway） |
| Access for family members | √ |
| Online Temporary access One time | √ |
| Online Temporary access limited by date and time | √ |
| Offline Dynamic Password | √ (Wherever you are, you can generate a one-time dynamic password which valid 5 minutes and share it with visitors.) |
| Double lock (Interior secure switch) | √ (Once this is enabled, only the first 3 unlocking permission and the App of the Owner of the are available to unlock the door.) |
| Activity log (Wrong passcode or fingerprint alarm,unlock record) | √ |
| Anti-peep Code | √ (You can enter random digits before and after your passcode. The door unlocks as long as the correct passcode is included.) |
| Low Battery Alert | √ (Lower than 4.6±0.2V) |
| Voice Broadcast | × |
| Technical Data | |
| Protocol | BLE 4.0 |
| Type of Fingerprint Module | Semiconductor fingerprint module |
| Number of fingerprints | 100 |
| Recognition time | ≤0.5s |
| Rejection rate | ≤0.01% |
| False acceptance rate | ≤0.0001% |
| Number of Codes | 100 |
| Length of digit for each code | 6-10 digits |
| Number of Keys | 2 |
| Scratch-Proof keypad | √ |
| Battery | AAA*4 (excluded) |
| Battery Life | 12 months |
| Emergency Power | Micro USB, 5V |
| Weather-proof | NO |
| Working Temperature | -20℃-65℃ |
| Working Humidity | 20%-93%RH |
| Comparison between 190, 290 and F290 Digital Lever Locks | |
| Model 190 | Model 290 & F290 |
| Single latch (Adjustable length 60/70mm) provided | 4558 Mute Mortise Lock provided, relative cylinder and cylinder cover provided. The shape of cover of the front handle of F290 is square, but the 290's is circle. |
| All others features are totally same | |
